pRI201-AN載體簡介

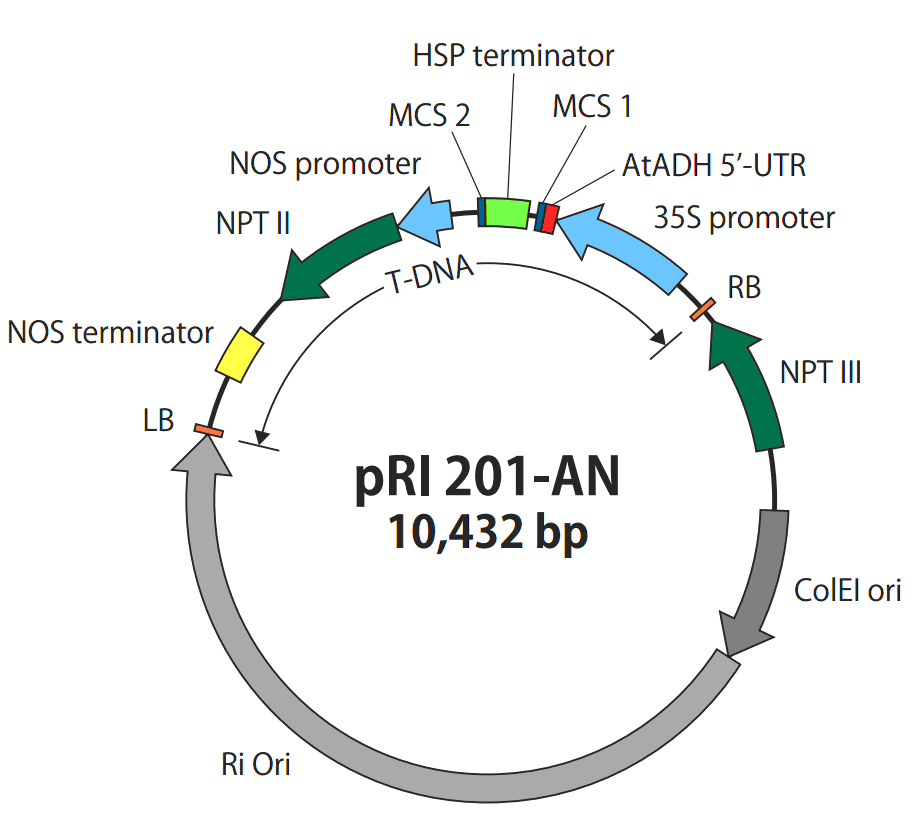

The Ri Plasmid pRI201 is designed for the transformation and expression of target genes from plant cells. This series of binary vectors for plant transformation retains the backbone of the pRI101 vectors, including an alcohol dehydrogenase (ADH) gene-derived 5' untranslated region (5'-UTR) downstream of the cauliflower mosaic virus (CaMV promoter)-derived 35S promoter. Additionally, these vectors have a heat shock protein (HSP) gene-derived terminator in place of the nopaline synthase (NOS) gene-derived terminator, allowing higher target gene expression compared with the pRI101 vector series. Multigene transformation with a single vector can be achieved by integrating an expression cassette containing another gene (promoter + enhancer + gene of interest + terminator) into the vector's second multiple cloning site (MCS2) located downstream of the HSP terminator.
The Ri Plasmid pRI201 binary vector series offers two types of vectors: pRI 201-AN DNA and pRI 201-ON DNA. pRI 201-AN DNA contains an Arabidopsis ADH-derived 5' UTR (AtADH 5'-UTR) and is suitable for dicotyledonous plant transformation. pRI 201-ON DNA contains a rice ADH-derived 5' UTR (OsADH 5'-UTR) and is suitable for monocotyledonous plant transformation. The pRI 201-AN DNA and pRI 201-ON DNA binary vectors for plant transformation have a mutant-type replication origin (Ri ori) from the Rhizobium rhizogenes Ri plasmid. These vectors also contain a replication origin (ColE1 ori) derived from the pUC plasmid; the ColE1 ori allows high copy number replication in E. coli. The vectors' multiple cloning site, located near the right border (RB) of T-DNA, allows stable target gene integration into the plant chromosome.
pRI201-AN載體特征：
Use pRI 201-AN DNA to transform dicotyledonous plant species
Use pRI 201-ON DNA to transform monocotyledonous plant species
Integrate multiple transgenes using a single vector
High copy number (ColE1 ori) replication in E. coli
pRI201-AN載體應(yīng)用：
Integration of multiple transgenes
Dicotyledonous plant transformation
Monocotyledonous plant transformation
參考文獻(xiàn)：
1. Sugio, T. et al. (2008) J. Biosci. Bioeng. 105(3):300-302.
2. Nagaya, S. et al. (2010) Plant & Cell Physiol. 51(2):328-332.
3. Nishiguchi, R. et al. (1987) Mol. Gen. Genet. 206:1-8.
4. Satoh, J. et al. (2004) J. Biosci. and Bioeng. 98(1):1-8.
5. Sugio, T. et al. (2010) J. Biosci. Bioeng. 109(2):170-173.
